Floors and Roofs

Previous Feature: Project Information - Next Feature: Wall Information

Model the floors and roofs of your building from within AutoCAD.

hvac load calculation floor

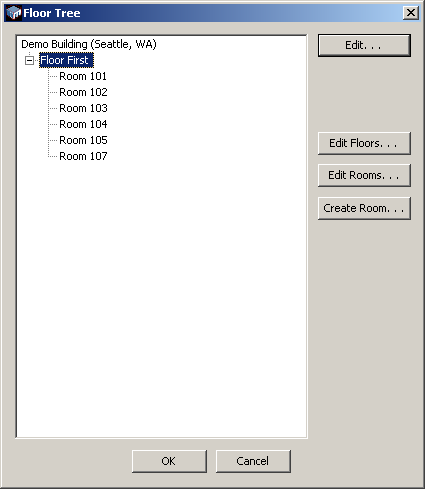

The floor tree editor makes it easy to manage the floors in your project and control which rooms are on a floor.

load calculation software

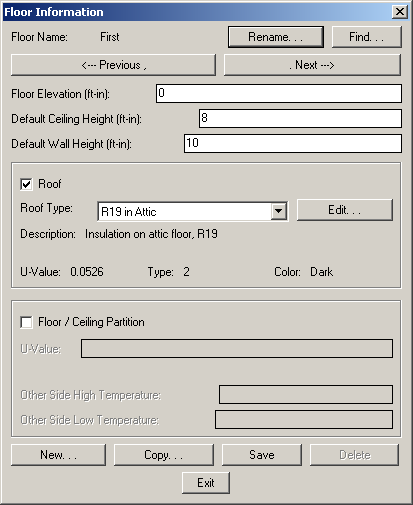

Elevation Data

Define the vertical dimensions of your floor.  Those dimensions are then applied to each room that is placed on that floor.

Roof Data

If your floor has a roof it is defined here.  Select a roof construction type from the list or create a new one with the appropriate U-value.

Previous Feature: Project Information - Next Feature: Wall Information
