Modify Graphic

Allows you to modify the graphic for a panel or device already inserted on the riser diagram.

You will be prompted to specify a panel or device.

Select riser diagram item to change graphic of:

The Modify Graphic dialog box will open:

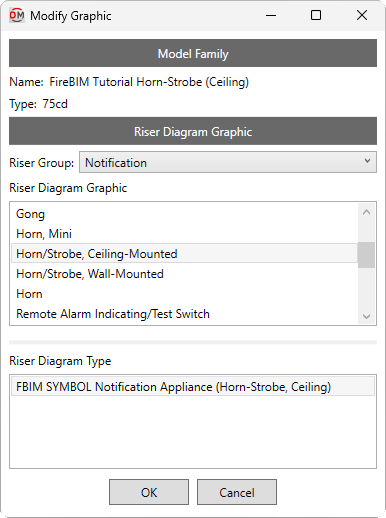

Modify Graphic Dialog Box​

Model Family​

This section displays the family and type of the selected panel or device. This information can be used to determine the appropriate graphic.

Riser Diagram Graphic​

  •  Riser Group: ▾ The graphic category used for the panel or device. The groups available are based upon settings in the Riser Diagram Device Graphics command.

  •  Riser Diagram Graphic ☰ The riser diagram graphic family used for the panel or device. The values in this list are based upon the Riser Diagram Device Graphics command and the selected Riser Group ▾.

  •  Riser Diagram Type ☰ The riser diagram graphic type used for the selected Riser Graphic ▾.

Press the button to change the panel or device graphic on the riser diagram.

You will be asked whether to update the labels for the panel or device:

  •  Update labels The labels will update to the default location and tags for the graphic.

  •  Leave labels as they are The location and tags will not be updated. The information for the existing tags will be updated.
