One-Line Diagram Default Labels

The One-Line Diagram Default Labels commands allow you to customize the default settings for labels available to be inserted on the one-line diagram.

See the General Customization Commands section for more information about how the Edit Project List, Edit Master List, Copy Project List to Master, and Copy Master List to Project commands work.

To edit the default one-line diagram labels project list, go to
Ribbon: DME: Customization→Project Customization→  One-Line Diagram Default Labels
Pulldown Menu: DM Electrical→Customization→One-Line Diagram Default Labels→Edit Project List

To edit the default one-line diagram labels standards list, go to
Ribbon: DME: Customization→Master & Standards Customization→  One-Line Diagram Default Labels
Pulldown Menu: DM Electrical→Customization→One-Line Diagram Default Labels→Edit Standards List

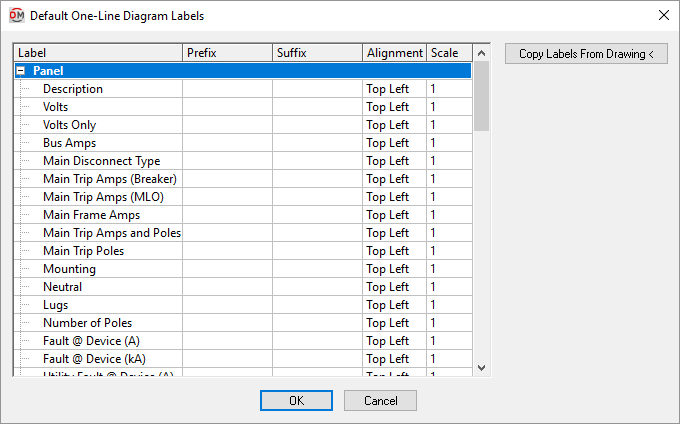

Default One-Line Diagram Labels Dialog Box​

  •   Press this button to copy the current label settings from an entity on the one-line diagram.

    You will be prompted to specify the entity from which the label settings will be copied.

    Select one-line entity to copy:

    The label settings for the selected entity will be copied.

  •  Label ☰ The name of the label.

  •  Prefix Text that is added before the value associated with the label in the database.

  •  Suffix Text that is added after the value associated with the label in the database.

  •  Alignment ▾ The alignment of the text within the text boundary.

  •  Scale The scale factor of the text.
