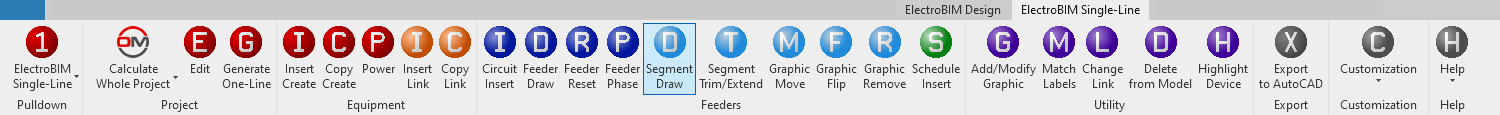

Segment Draw

Allows you to redraw part of a feeder on the single-line diagram. You can use this command to add segments to a feeder.

You will be prompted to specify a feeder segment.

Select feeder segment to redraw:

You will then be prompted to specify the starting point of the feeder segment.

Specify starting point of feeder segment:

You will then be prompted to specify additional points to which the feeder will be drawn.

Specify next point of feeder:

The feeder will be drawn to the specified point in a straight line from the previous point. Continue specifying points, or press ESC to finish the command.

If the original feeder segment had a graphic, the graphic will be inserted on the first new feeder segment.
