Customization Poll: Receptacle Graphics

Sunday, May 1st, 2011

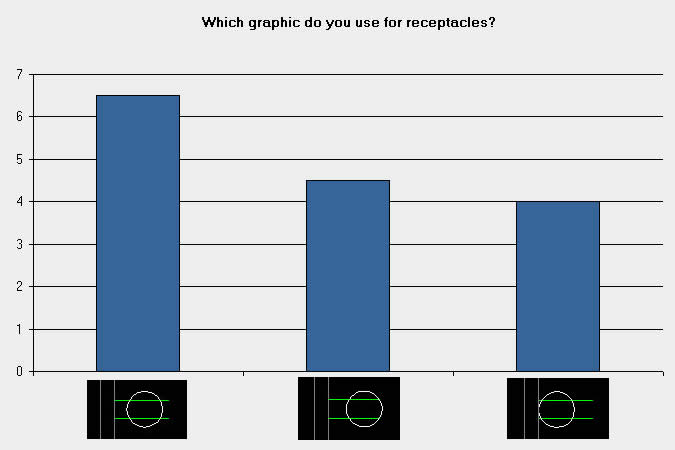

In the April 2011 newsletter, we asked what graphic our customers use for receptacles. We presented three options that varied the placement of the circle relative to the wall and whether the two lines were trimmed or not. Here are the results of the survey:

One person selected “Other” and said they use option 1 or 2. They are the half-response to those two options.

The responses were fairly evenly split between the three options, though the first two are very similar variations of each other. Combining the first two choices, 73% of respondents use one of those two graphics, while 27% use option 3.
